LTC2269 20Msps Low Noise ADC

Linear Technology

LTC2269 Description

.
The LTC®2269 is a sampling 16-bit A/D converter designed for digitizing high frequency, wide dynamic range signals.

LTC2269 Features

* n 84.1dB SNR (46μVRMS Input Referred Noise) n 99dB SFDR n ±2.3LSB INL(Maximum) n Low Power: 88mW n Single 1.8V Supply n CMOS, DDR CMOS, or DDR LVDS Outputs n Selectable Input Ranges: 1VP-P to 2.1VP-P n 200MHz Full Power Bandwidth S/H n Shutdown and Nap Modes n Serial SPI Port for Configuration n Pin

📥 Download Datasheet

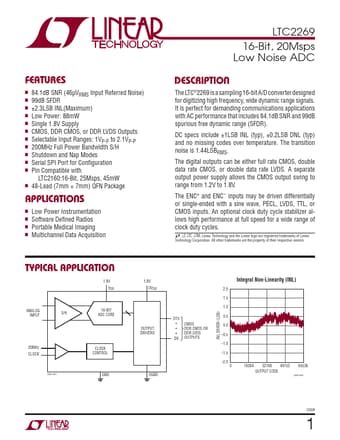

LTC2269 Datasheet Preview — Preview of LTC2269 PDF

Datasheet Details

Part number: LTC2269
Manufacturer: Linear Technology
File Size: 756.46 KB
Datasheet: LTC2269_LinearTechnology.pdf
Description: 20Msps Low Noise ADC
