LTC2358-16 - 200ksps/Ch Differential ADC

Linear Technology

📥 Download Datasheet

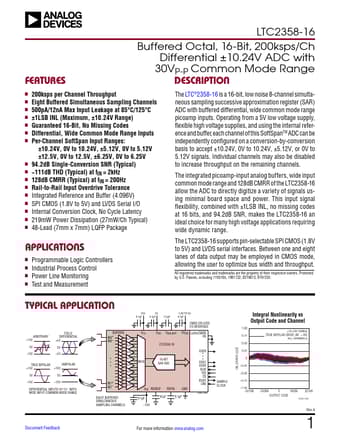

LTC2358-16 Datasheet Preview — Preview of LTC2358-16 PDF

Datasheet Details

Part number: LTC2358-16
Manufacturer: Linear Technology
File Size: 3.12 MB
Datasheet: LTC2358-16-LinearTechnology.pdf
Description: 200ksps/Ch Differential ADC

LTC2358-16 Product details

Description

nn 200ksps per Channel Throughput nn Eight Buffered Simultaneous Sampling Channels nn 400pA/4nA Max Input Leakage at 85°C/125°C nn ±1LSB INL (Maximum, ±10.24V Range) nn Guaranteed 16-Bit, No Missing Codes nn Differential, Wide Common Mode Range Inputs nn Per-Channel SoftSpan Input Ranges: ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V ±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V nn 94.2dB Single-Conversion SNR (Typical) nn. 111dB THD (Typical) at fIN = 2kHz nn 128dB CMRR (Typical) at fIN =.

Features

LTC2358-16 Buffered Octal, 16-Bit, 200ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range.
