LTC2420

20-Bit uPower No Latency ADC

LTC2420 Features

* s 20-Bit ADC in SO-8 Package s 8ppm INL, No Missing Codes at 20 Bits s 4ppm Full-Scale Error s 0.5ppm Offset s 1.2ppm Noise s Digital Filter Settles in a Single Cycle. Each Conversion Is Accurate, Even After an Input Step s Fast Mode: 16-Bit Noise, 12 Bits TUE at 100sps s Internal Oscillator

LTC2420 Datasheet (395.88 KB)

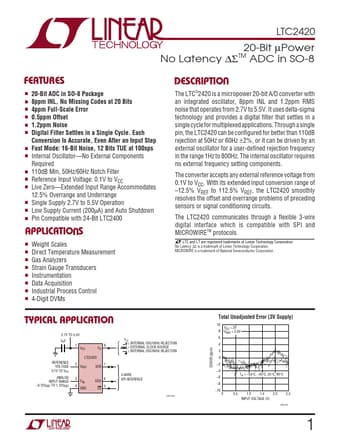

Preview of LTC2420 PDF

Datasheet Details

Part number:

LTC2420

Manufacturer:

Linear Technology

File Size:

395.88 KB

Description:

20-bit upower no latency adc.
