LTC2645

Quad 12-/10-/8-Bit PWM to VOUT DACs

Linear Technology

LTC2645 Features

* nn No Latency PWM-to-Voltage Conversion nn Voltage Output Updates and Settles within 8µs nn 100kHz to 30Hz PWM Input Frequency nn ±2.5LSB Max INL; ±1LSB Max DNL (LTC2645-12) nn Guaranteed Monotonic nn Pin-Selectable Internal or External Reference nn 2.7V to 5.5V Supply Range nn 1.71V to 5.5V Input V

LTC2645 General Description

The LTC®2645 is a family of quad 12-, 10-, and 8-bit PWM-to-voltage output DACs with an integrated high accuracy, low drift, 10ppm/°C reference in a 16-lead MSOP package. It has rail-to-rail output buffers and is guaranteed monotonic. The LTC2645 measures the period and pulse width of the PWM input .

LTC2645 Datasheet (941.36 KB)

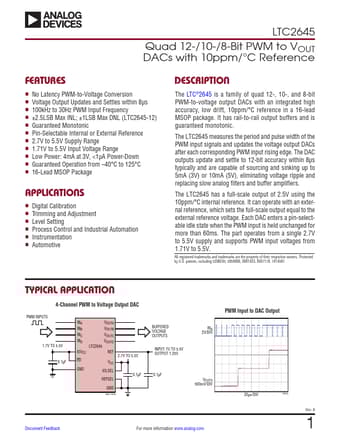

LTC2645 Datasheet Preview — Preview of LTC2645 PDF

Datasheet Details

Part number:

LTC2645

Manufacturer:

Linear Technology

File Size:

941.36 KB

Description:

Quad 12-/10-/8-bit pwm to vout dacs.
