LTC2664

SoftSpan DACs

Linear Technology

LTC2664 Features

* nn Precision Reference 10ppm/°C Max nn Independently Programmable Output Ranges: 0V to 5V, 0V to 10V, ±2.5V, ±5V, ±10V nn Full 16-Bit/12-Bit Resolution at All Ranges nn Maximum INL Error: ±4LSB at 16 Bits nn A/B Toggle via Software or Dedicated Pin nn Analog Multiplexer with Auxiliary Inputs nn Guar

LTC2664 General Description

The LTC®2664 is a family of four-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™ DACs offer five output ranges up to ±10V. The range of each channel is independent.

LTC2664 Datasheet (1.20 MB)

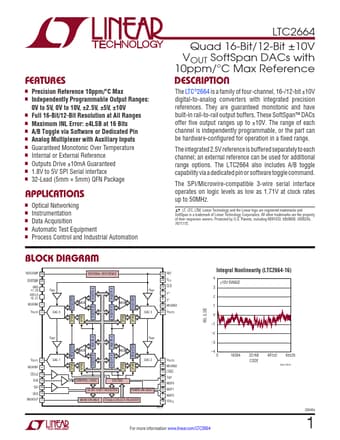

LTC2664 Datasheet Preview — Preview of LTC2664 PDF

Datasheet Details

Part number:

LTC2664

Manufacturer:

Linear Technology

File Size:

1.20 MB

Description:

Softspan dacs.
