LTC3200-5, LTC3200 Regulated Charge Pump DC/DC Converters

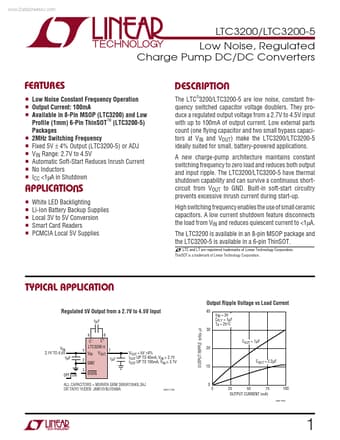

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com LTC3200/LTC3200-5 Low Noise, Regulated Charge Pump DC/DC Converters .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC3200-5, LTC3200. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTC3200-5, LTC3200
Manufacturer
Linear Technology
File Size
218.59 KB
Datasheet
LTC3200_LinearTechnology.pdf
Description
Regulated Charge Pump DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: LTC3200-5, LTC3200.
Please refer to the document for exact specifications by model.

Features

* s s s DESCRIPTIO s s s s s s U APPLICATIO S s s s s s Low Noise Constant Frequency Operation Output Current: 100mA Available in 8-Pin MSOP (LTC3200) and Low Profile (1mm) 6-Pin ThinSOTTM (LTC3200-5) Packages 2MHz Switching Frequency Fixed 5V ± 4% Output (LTC3200-5) or ADJ VIN Range: 2.7V to 4.5V

Applications

* A new charge-pump architecture maintains constant switching frequency to zero load and reduces both output and input ripple. The LTC3200/LTC3200-5 have thermal shutdown capability and can survive a continuous shortcircuit from VOUT to GND. Built-in soft-start circuitry prevents excessive inrush cur
