LTC3541 synchronous buck DC/DC converter

LTC3541 Description

.
The LTC®3541 combines a synchronous buck DC/ DC converter with a very low dropout linear regulator (VLDO) to provide up to two output voltages from a.

LTC3541 Features

* nn High Efficiency, 500mA Buck Plus 300mA VLDO™ Regulator nn Auto Start-Up Powers Buck Output Prior to VLDO/Linear Regulator Output nn Independent High Efficiency, 500mA Buck (VIN: 2.7V to 5.5V) nn 300mA VLDO Regulator with 30mA Standalone Mode nn No External Schottky Diodes Required nn Buck Output

📥 Download Datasheet

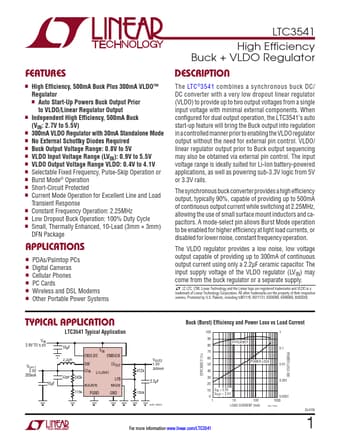

Preview of LTC3541 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC3541
Manufacturer
Linear Technology
File Size
585.99 KB
Datasheet
LTC3541_LinearTechnology.pdf
Description
synchronous buck DC/DC converter
