LTC3704, Positive-to-Negative DC/DC Controller

LTC3704 Wide Input Range, No RSENSETM Positive-to-Negative DC/DC Controller U U .

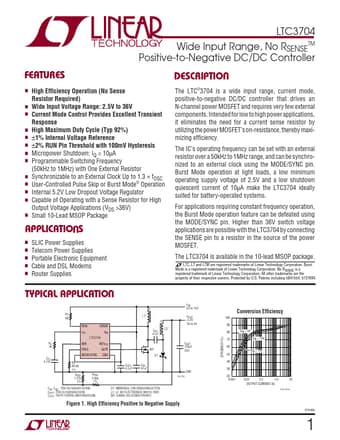

datasheet Preview Page 1 from Datasheet4u.com

LTC3704_LinearTechnology.pdf

LTC3704 Datasheet Preview — Preview of LTC3704 PDF

Datasheet Details

Part number:

LTC3704

Manufacturer:

Linear Technology

File Size:

325.54 KB

Description:

Positive-to-Negative DC/DC Controller

Features

* DESCRIPTIO
* High Efficiency Operation (No Sense Resistor Required)
* Wide Input Voltage Range: 2.5V to 36V
* Current Mode Control Provides Excellent Transient Response
* High Maximum Duty Cycle (Typ 92%)
* ±1% Internal Voltage Reference
* ±2% RUN Pin Threshold with 100mV H

Applications

* (VDS >36V)
* Small 10-Lead MSOP Package U APPLICATIO S
* SLIC Power Supplies
* Telecom Power Supplies
* Portable Electronic Equipment
* Cable and DSL Modems
* Router Supplies The LTC®3704 is a wide input range, current mode, positive-to-negative DC/DC controller that drives
