LTC3851 Datasheet, Controller, Linear Technology

LTC3851 Features

  • Controller n Wide VIN Range: 4V to 38V Operation n RSENSE or DCR Current Sensing n ±1% Output Voltage Accuracy n Phase-Lockable Fixed Frequency: 250kHz to 750kHz n Dual N-Channel MOSFET Synchronou

PDF File Details

Part number:

LTC3851

Manufacturer:

Linear Technology

File Size:

329.81kb

Download:

📄 Datasheet

Description:

Synchronous step-down switching regulator controller. The LTC®3851 is a high performance synchronous step-down switching regulator controller that drives an all N-channel synchronous powe

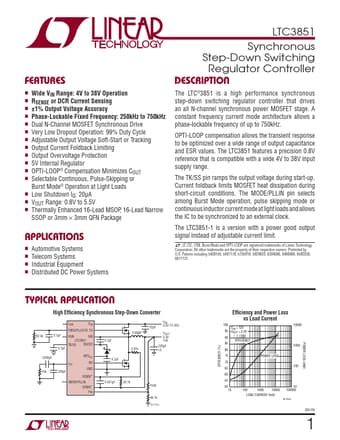

Datasheet Preview: LTC3851 📥 Download PDF (329.81kb)
Page 2 of LTC3851 Page 3 of LTC3851

LTC3851 Application

  • Applications n Automotive Systems n Telecom Systems n Industrial Equipment n Distributed DC Power Systems LTC3851 Synchronous Step-Down Switching R
