LTC4054X-4.2, LTC4054X-42 Standalone Linear Li-Ion Battery Charger

Linear Technology

Description

LTC4054-4.2/LTC4054X-4.2 Standalone Linear Li-Ion Battery Charger with Thermal Regulation in ThinSOT U U .

📥 Download Datasheet

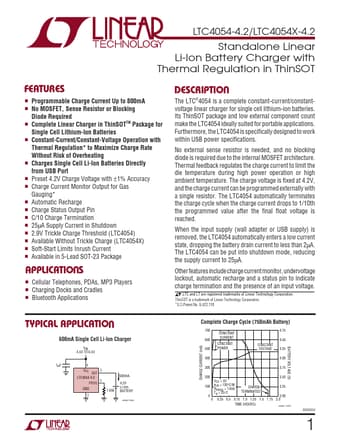

LTC4054X-4.2 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC4054X-4.2, LTC4054X-42. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTC4054X-4.2, LTC4054X-42
Manufacturer: Linear Technology
File Size: 192.42 KB
Datasheet: LTC4054X-42_LinearTechnology.pdf
Description: Standalone Linear Li-Ion Battery Charger
Note: This datasheet PDF includes multiple part numbers: LTC4054X-4.2, LTC4054X-42.
Please refer to the document for exact specifications by model.

Features

* s Programmable Charge Current Up to 800mA s No MOSFET, Sense Resistor or Blocking Diode Required s Complete Linear Charger in ThinSOTTM Package for Single Cell Lithium-Ion Batteries s Constant-Current/Constant-Voltage Operation with Thermal Regulation
* to Maximize Charge Rate Without Risk of Ove

Applications

* DESCRIPTIO The LTC®4054 is a complete constant-current/constantvoltage linear charger for single cell lithium-ion batteries. Its ThinSOT package and low external component count make the LTC4054 ideally suited for portable applications. Furthermore, the LTC4054 is specifically designed to work with
