LTC4368 - 100V UV/OV and Reverse Protection Controller

Product Overview

Linear Technology

Datasheet Details

Part number	LTC4368
Manufacturer	Linear Technology
File Size	1.71 MB
Description	100V UV/OV and Reverse Protection Controller
Datasheet	LTC4368 Datasheet

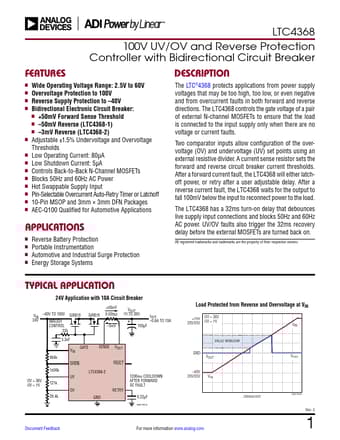

Additional preview pages of the LTC4368 datasheet.

Product details

Description

The LTC®4368 protects applications from power supply voltages that may be too high, too low, or even negative and from overcurrent faults in both forward and reverse directions.

Features

n Wide Operating Voltage Range: 2.5V to 60V n Overvoltage Protection to 100V n Reverse Supply Protection to.
40V n Bidirectional Electronic Circuit Breaker: n +50mV Forward Sense Threshold n.
50mV Reverse (LTC4368-1) n.
3mV Reverse (LTC4368-2) n Adjustable ±1.5% Undervoltage and Overvoltage Thresholds n Low Operating Current: 80µA n Low Shutdown Current: 5µA n Controls Back-to-Back N-Channel MOSFETs n Blocks 50Hz and 60Hz AC Power n Hot Swappable Supply Input n Pin-Select.
