LTC6905

17MHz to 170MHz Resistor Set SOT-23 Oscillator

LTC6905 Features

* n One External Resistor Sets the Frequency n Fast Start-Up Time: 100μs Typical n Frequency Range: 17MHz to 170MHz n Frequency Error ±0.5% Typ 17MHz to 170MHz (TA = 0°C to 70°C, Over All Settings) n ±20ppm/°C Temperature Stability n Rise Time: 0.5ns, CL = 5pF n Timing Jitter: 7.2ps RMS at 170MHz n 50

LTC6905 General Description

The LTC®6905 precision, programmable silicon oscillator is easy to use and occupies very little board space. It requires only a single resistor to set the output frequency from 17MHz to 170MHz with a typical frequency error of 0.5% or less. The LTC6905 operates with a single 2.7V to 5.5V power sup.

LTC6905 Datasheet (161.53 KB)

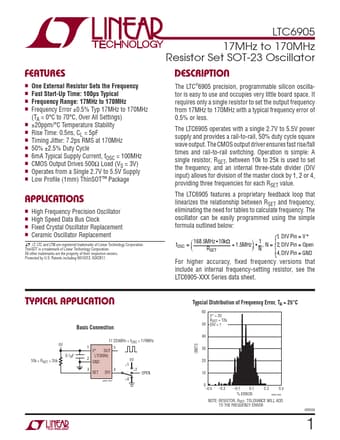

Preview of LTC6905 PDF

Datasheet Details

Part number:

LTC6905

Manufacturer:

Linear Technology

File Size:

161.53 KB

Description:

17mhz to 170mhz resistor set sot-23 oscillator.
