LTC6992-4, LTC6992-1 Datasheet - Linear Technology

LTC6992-4, LTC6992-1, Voltage-Controlled Pulse Width Modulator

.
The LTC®6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability.

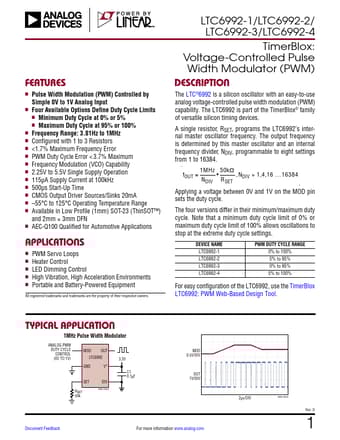

datasheet Preview Page 1 from Datasheet4u.com

LTC6992-1_LinearTechnology.pdf

LTC6992-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC6992-4, LTC6992-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTC6992-4, LTC6992-1

Manufacturer:

Linear Technology

File Size:

1.32 MB

Description:

Voltage-Controlled Pulse Width Modulator

Note:

This datasheet PDF includes multiple part numbers: LTC6992-4, LTC6992-1.
Please refer to the document for exact specifications by model.

Features

* n Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input n Four Available Options Define Duty Cycle Limits n Minimum Duty Cycle at 0% or 5% n Maximum Duty Cycle at 95% or 100% n Frequency Range: 3.81Hz to 1MHz n Configured with 1 to 3 Resistors n

Applications

* APPLICATIONS n PWM Servo Loops n Heater Control n LED Dimming Control n High Vibration, High Acceleration Environments n Portable and Battery-Powered Equipment All registered trademarks and trademarks are the property of their respective owners. LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4 TimerB
