LTC7124

Dual 3.5A Synchronous Step-Down Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Analog Devices Inc LTC7124IUDD-PBF IC REG BUCK ADJ 3.5A DL 24QFN DigiKey 291 146 units
$6.64

LTC7124 Datasheet (1.63 MB)

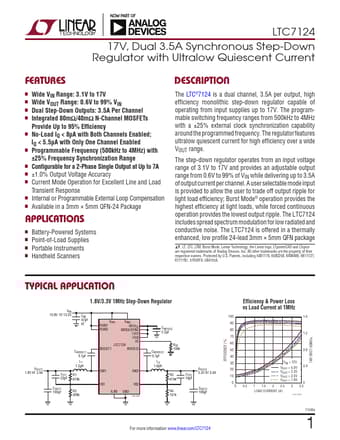

Preview of LTC7124 PDF Datasheet

Datasheet Details

Part number:

LTC7124

Manufacturer:

Linear Technology

File Size:

1.63 MB

Description:

Dual 3.5a synchronous step-down regulator

LTC7124 Features

* nn Wide VIN Range: 3.1V to 17V nn Wide VOUT Range: 0.6V to 99% VIN nn Dual Step-Down Outputs: 3.5A Per Channel nn Integrated 80mΩ/40mΩ N-Channel MOSFETs Provide Up to 95% Efficiency nn No-Load IQ < 8μA with Both Channels Enabled; IQ < 5.5μA with Only One Channel Enabled nn Programmable Frequency (50

LTC7124 General Description

The LTC®7124 is a dual channel, 3.5A per output, high efficiency monolithic step-down regulator capable of operating from input supplies up to 17V. The pro.
