LTM8062

uModule Power Tracking Battery Chargers

LTM8062 Features

* n Complete Battery Charger System n Input Supply Voltage Regulation Loop for Peak Power Tracking in MPPT (Maximum Peak Power Tracking) Solar Applications n Resistor Programmable Float Voltage Up to 14.4V on the LTM8062 and 18.8V on the LTM8062A n Wide Input Voltage Range: 4.95V to 32V (40V Abs M

LTM8062 General Description

The LTM®8062/LTM8062A are complete 32VIN, 2A µModule® power tracking battery chargers. The LTM8062/ LTM8062A provide a constant-current/constant-voltage charge characteristic, a 2A maximum charge current, and employ a 3.3V float voltage feedback reference, so any desired battery float voltage up to .

LTM8062 Datasheet (456.06 KB)

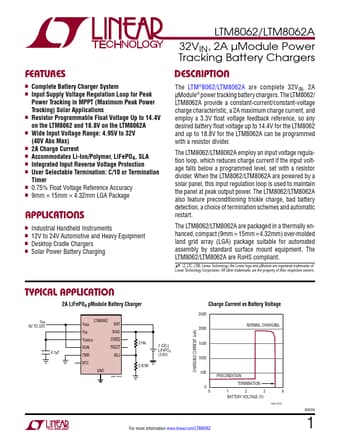

Preview of LTM8062 PDF

Datasheet Details

Part number:

LTM8062

Manufacturer:

Linear Technology

File Size:

456.06 KB

Description:

Umodule power tracking battery chargers.
