LM337 Datasheet - Linear

Negative Adjustable Regulator

LM337 Features

* n Guaranteed 1% Initial Voltage Tolerance n Guaranteed 0.01%/V Line Regulation n Guaranteed 0.5% Load Regulation n Guaranteed 0.02%/W Thermal Regulation n 100% Burn-in in Thermal Limit APPLICATIONS n Adjustable Power Supplies n System Power Supplies n Precision Voltage/Current Regulators n On-Card R

LM337 General Description

The LT®137A/LT337A negative adjustable regulators will deliver up to 1.5A output current over an output voltage range of *1.2V to *37V. Linear Technology has made signiﬁcant improvements in these regulators compared to previous devices, such as better line and load regulation, and a .

LM337 Datasheet (152.49 KB)

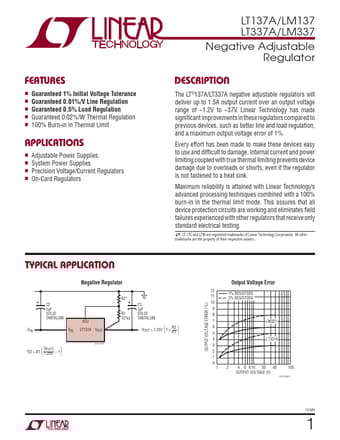

LM337 Datasheet Preview — Preview of LM337 PDF

Datasheet Details

Part number:

LM337

Manufacturer:

Linear

File Size:

152.49 KB

Description:

Negative adjustable regulator.
