LT1083

Low Dropout Positive Fixed Regulator

LT1083 Features

* nn 3-Terminal Adjustable nn Output Current of 3A, 5A or 7.5A nn Operates Down to 1V Dropout nn Guaranteed Dropout Voltage at Multiple Current Levels nn Line Regulation: 0.015% nn Load Regulation: 0.1% nn 100% Thermal Limit Functional Test nn Fixed Versions Available nn Available in 3-Lead Plastic TO

LT1083 General Description

The LT®1083 series of positive adjustable regulators are designed to provide 7.5A, 5A and 3A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load.

LT1083 Datasheet (286.29 KB)

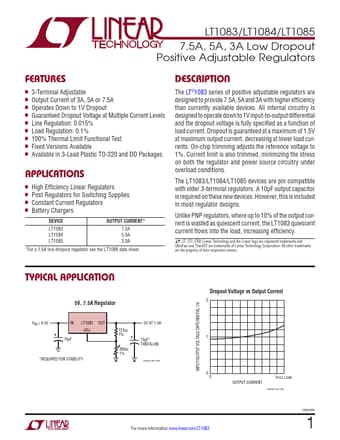

Preview of LT1083 PDF

Datasheet Details

Part number:

LT1083

Manufacturer:

Linear

File Size:

286.29 KB

Description:

Low dropout positive fixed regulator.
