LT1940L - 1.1MHz Step-Down Switching Regulator

This page provides the datasheet information for the LT1940L, a member of the LT1940 1.1MHz Step-Down Switching Regulator family.

Datasheet Summary

Features

  • s Wide Input Voltage Range LT1940: 3.6V to 25V LT1940L: 3.6V to 7V s Two 1.4A Output Switching Regulators with Internal Power Switches s Constant 1.1MHz Switching Frequency s Anti-Phase Switching Reduces Ripple s Independent Shutdown/Soft-Start Pins s Independent Power Good Indicators Ease Supply Sequencing s Uses Small Inductors and Ceramic Capacitors s Small 16-Lead Thermally Enhanced TSSOP Surface MUount Package.

📥 Download Datasheet

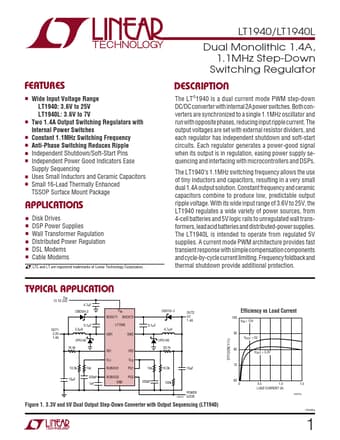

Datasheet preview – LT1940L
