LT5581 - 6GHz RMS Power Detector

Name: LT5581
SKU: LT5581-978841

Linear

📥 Download Datasheet

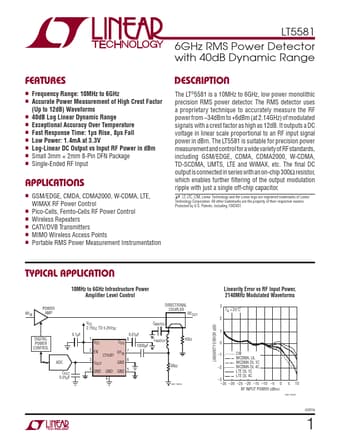

LT5581 Datasheet Preview — Preview of LT5581 PDF

Datasheet Details

Part number	LT5581
Manufacturer	Linear
File Size	498.91 KB
Description	6GHz RMS Power Detector
Datasheet	LT5581-Linear.pdf

LT5581 Product details

Description

The LT®5581 is a 10MHz to 6GHz, low power monolithic precision RMS power detector. 34dBm to +6dBm (at 2.14GHz) of modulated signals with a crest factor as high as 12dB.

Features

n Frequency Range: 10MHz to 6GHz n Accurate Power Measurement of High Crest Factor (Up to 12dB) Waveforms n 40dB Log Linear Dynamic Range n Exceptional Accuracy Over Temperature n Fast Response Time: 1μs Rise, 8μs Fall n Low Power: 1.4mA at 3.3V n Log-Linear DC Output vs Input RF Power in dBm n Small 3mm × 2mm 8-Pin DFN Package n Single-Ended RF Input.
