LT8705A

Synchronous 4-Switch BuckBoost DC/DC Controller

LT8705A Features

* nn Single Inductor Allows VIN Above, Below, or Equal to Regulated VOUT nn VIN Range 2.8V (Need EXTVCC > 6.4V) to 80V nn VOUT Range: 1.3V to 80V nn Quad N-Channel MOSFET Gate Drivers nn Synchronous Rectification: Up to 98% Efficiency nn Input and Output Current Monitor Pins nn Synchronizable Fixed Fr

LT8705A General Description

The LT®8705A is a high performance buck-boost switching regulator controller that operates from input voltages above, below or equal to the output voltage. The part has integrated input current, input voltage, output current and output vo.

LT8705A Datasheet (612.85 KB)

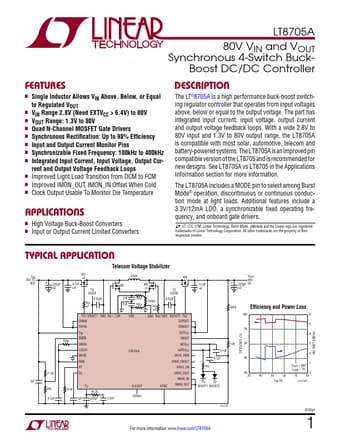

Preview of LT8705A PDF

Datasheet Details

Part number:

LT8705A

Manufacturer:

Linear

File Size:

612.85 KB

Description:

Synchronous 4-switch buckboost dc/dc controller.
