LTC1411 - Single Supply 14-Bit 2.5Msps ADC

LTC1411 Description

W U .

LTC1411 Features

* s Sample Rate: 2.5Msps s 80dB S/(N + D) and 90dB THD at 100kHz fIN s Single 5V Operation s No Pipeline Delay s Programmable Input Ranges s Low Power Dissipation: 195mW (Typ) s True Differential Inputs Reject Common Mode Noise s Out-of-Range Indicator s Internal or External Reference s Sleep (1µA) an

LTC1411 Applications

* The LTC1411 converts either differential or single-ended inputs and presents data in 2’s complement format. Maximum DC specs include ±2LSB INL and 14-bit no missing code over temperature. Outstanding dynamic performance includes 80dB S/(N + D) and 90dB THD at 100kHz input frequency. The LTC1411 has

📥 Download Datasheet

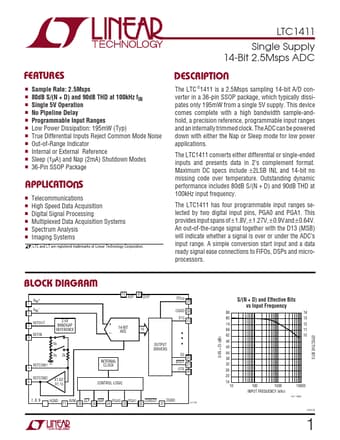

Preview of LTC1411 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC1411
Manufacturer
Linear
File Size
219.45 KB
Datasheet
LTC1411-Linear.pdf
Description
Single Supply 14-Bit 2.5Msps ADC
