LTC3614

4MHz Monolithic Synchronous Step-Down DC/DC Converter

LTC3614 Features

* n 4A Output Current n 2.25V to 5.5V Input Voltage Range n Low Output Ripple Burst Mode® Operation: IQ = 75µA n ±1% Output Voltage Accuracy n Output Voltage Down to 0.6V n High Efficiency: Up to 95% n Low Dropout Operation: 100% Duty Cycle n Programmable Slew Rate on SW Node Reduces Noise and

LTC3614 General Description

The LTC®3614 is a low quiescent current monolithic synchronous buck regulator using a current mode, constant frequency architecture. The no-load DC supply current in sleep mode is only 75µA while maintaining the output voltage (Burst Mode operation) at no load, dropping to zero current in shutdown. .

LTC3614 Datasheet (824.21 KB)

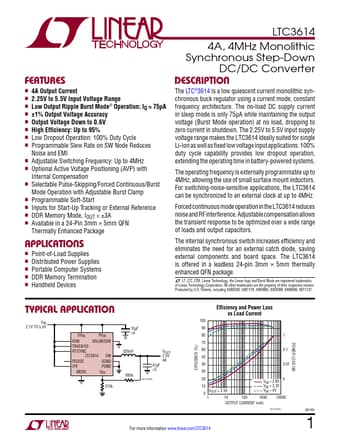

Preview of LTC3614 PDF

Datasheet Details

Part number:

LTC3614

Manufacturer:

Linear

File Size:

824.21 KB

Description:

4mhz monolithic synchronous step-down dc/dc converter.
