LTC4558 - Dual SIM/Smart Card Power Supply/Interface

Linear

📥 Download Datasheet

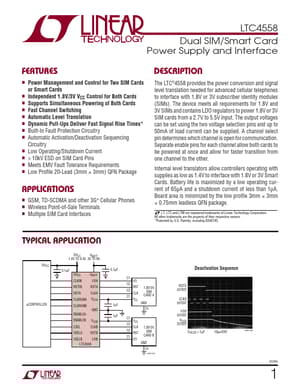

LTC4558 Datasheet Preview — Preview of LTC4558 PDF

Datasheet Details

Part number: LTC4558
Manufacturer: Linear
File Size: 142.11 KB
Datasheet: LTC4558-Linear.pdf
Description: Dual SIM/Smart Card Power Supply/Interface

LTC4558 Product details

Description

The LTC®4558 provides the power conversion and signal level translation needed for advanced cellular telephones to interface with 1.8V or 3V subscriber identity modules (SIMs).

Features

Power Management and Control for Two SIM Cards or Smart Cards.
Independent 1.8V/3V VCC Control for Both Cards.
Supports Simultaneous Powering of Both Cards.
Fast Channel Switching.
Automatic Level Translation.
Dynamic Pull-Ups Deliver Fast Signal Rise Times.
Built-In Fault Protection Circuitry.
Automatic Activation/Deactivation Sequencing Circuitry.
Low Operating/Shutdown Current.
> 10kV ESD on SIM Card Pins.
Meets EMV Fault Tolerance.
