LTC5569

300MHz to 4GHz 3.3V Dual Active Downconverting Mixer

LTC5569 Features

* n High IIP3: 26.8dBm at 1950MHz n 2dB Conversion Gain n Low Noise Figure: 11.7dB at 1950MHz n 17dB NF Under 5dBm Blocking n 44dB Channel Isolation n Low Power: 3.3V/600mW Total n Very Small Solution Size n Enable Pins for Each Mixer n Wide IF Frequency Range n LO Input 50Ω Matched in All M

LTC5569 General Description

The LTC®5569 dual active downconverting mixer is optimized for diversity and MIMO receiver applications that require low power and small size. Each mixer includes an independent LO buffer amplifier, active mixer core, and bias circuit with enable pin. The symmetry of the IC assures that a phase and .

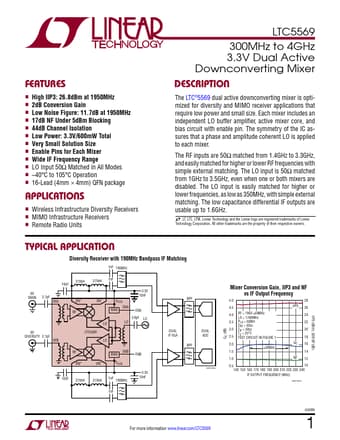

LTC5569 Datasheet (444.52 KB)

Preview of LTC5569 PDF

Datasheet Details

Part number:

LTC5569

Manufacturer:

Linear

File Size:

444.52 KB

Description:

300mhz to 4ghz 3.3v dual active downconverting mixer.
