L24W04 Datasheet - Link Smart

L24W04 - (L24W04 / L24W08) Serial EEPROM

The L24W04/08 is a 4K/8K-bit serial read/write non-volatile memory device using the CMOS floating gate process.

Its 4,096/8,192 bits of memory are organized into 512/1,024 words and each word is 8 bits.

The device is optimized for use in many industrial and commercial Block Diagram applications whe

www.DataSheet4U.com L24W04/08 Serial EEPROM DataSheet4U.com DataShee Data Sheet Revision A S062A DataSheet4U.com DataSheet 4 U .com www.DataSheet4U.com LinkSmart L24W04/08 4K/8K 2-Wire (512x8/1,024x8) 3V~5.5V CMOS Serial EEPROM PRELIMINARY A Revision history Rev.

No.

A Approved date 2004/4/26 History Initial issue Remark (purpose) Preliminary et4U.com DataSheet4U.com DataShee All rights reserved.

LinkSmart reserves the right to change its products and specification `without prior

L24W04 Features

* z Operating voltage: 3V~5.5V z Low power consumption - Operation: 5mA max. - Standby: 5µA max. z Internal organization: - 4K: 512x8 - 8K: 1,024x8 z 2-wire Serial Interface z Write cycle time: 5ms max. L24W04/08 4K/8K 2-Wire (512x8/1,024x8) 3V~5.5V CMOS Serial EEPROM PRELIMINARY A z z z z z z z z

L24W04_LinkSmart.pdf

Preview of L24W04 PDF

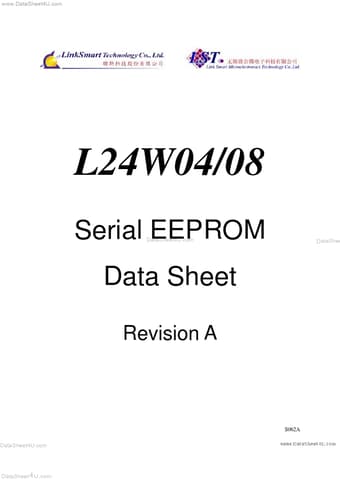

L24W04 Datasheet Preview Page 2 L24W04 Datasheet Preview Page 3

Datasheet Details

Part number:

L24W04

Manufacturer:

Link Smart

File Size:

356.00 KB

Description:

(l24w04 / l24w08) serial eeprom.
