DBFE-200U120 - 200W 0-10V Dimmable

Linkcom

The DBFE-200U120 by Linkcom is a 200W 0-10V Dimmable. Below is the official datasheet preview.

📥 Download Datasheet

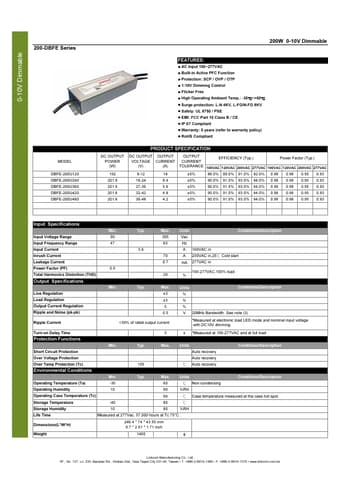

DBFE-200U120 200W 0-10V Dimmable by Linkcom - Datasheet Preview — Official preview page of the DBFE-200U120 200W 0-10V Dimmable datasheet (Linkcom).

Datasheet Details

Part number	DBFE-200U120
Manufacturer	Linkcom
File Size	704.63 KB
Description	200W 0-10V Dimmable
Datasheet	DBFE-200U120-Linkcom.pdf
Additional preview pages of the DBFE-200U120 datasheet.

DBFE-200U120 Product details

Features

AC Input 100~277VAC.
Built-in Active PFC Function.
Protection: SCP / OVP / OTP.
1-10V Dimming Control.
Flicker Free.
High Operating Ambient Temp. : -30℃~+60℃.
Surge protection: L-N 4KV, L-FG/N-FG 8KV.
Safety: UL 8750 / PSE.
EMI: FCC Part 15 Class B / CE.
IP 67 Compliant.
Warranty: 5 years (refer to warranty policy).
RoHS Compliant.
