1.0SMB36A, 1.0SMB6.8A - TVS Diodes

Name: 1.0SMB36A
SKU: 1.0SMB36A-1584065

📥 Download Datasheet

1.0SMB36A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1.0SMB36A, 1.0SMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1.0SMB36A, 1.0SMB6.8A
Manufacturer	Liown
File Size	569.79 KB
Description	TVS Diodes
Datasheet	1.0SMB6.8A-Liown.pdf
Note	This datasheet PDF includes multiple part numbers: 1.0SMB36A, 1.0SMB6.8A. Please refer to the document for exact specifications by model.

1.0SMB36A Product details

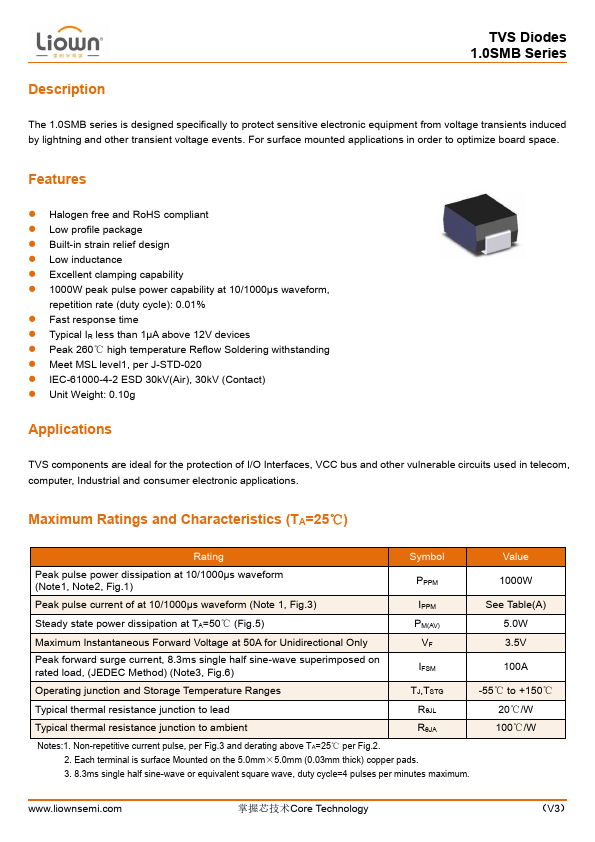

Description

The 1.0SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Halogen free and RoHS compliant.
Low profile package.
Built-in strain relief design.
Low inductance.
Excellent clamping capability.
1000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%.
Fast response time.
Typical IR less than 1μA above 12V devices.
Peak 260℃ high temperature Reflow Soldering withstanding.
Meet MSL level1, per J-STD-020.
IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact).
Unit Weight: 0.
