1.0SMB68A, 1.0SMB6.8A TVS Diodes

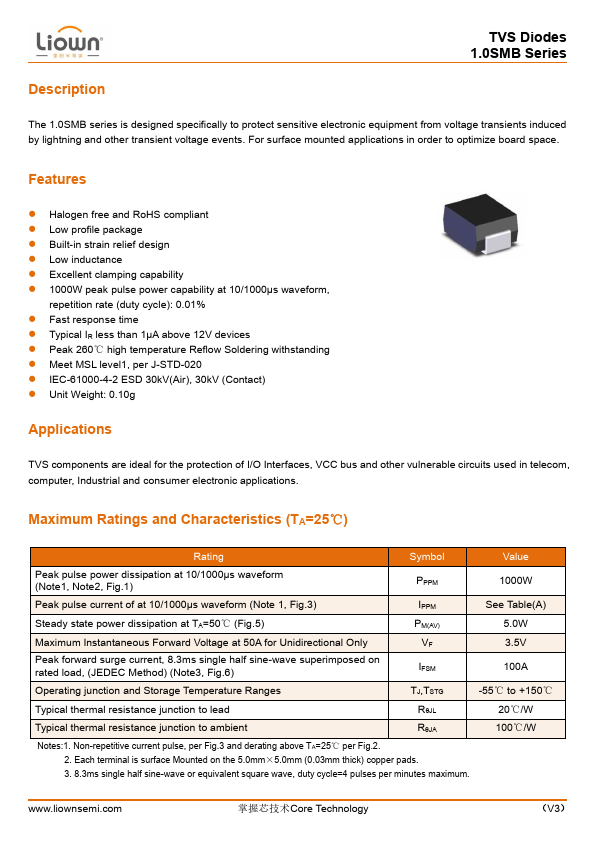

Description

TVS Diodes 1.0SMB Series .
The 1.

📥 Download Datasheet

1.0SMB68A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1.0SMB68A, 1.0SMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1.0SMB68A, 1.0SMB6.8A
Manufacturer: Liown
File Size: 569.79 KB
Datasheet: 1.0SMB6.8A-Liown.pdf
Description: TVS Diodes
Note: This datasheet PDF includes multiple part numbers: 1.0SMB68A, 1.0SMB6.8A.
Please refer to the document for exact specifications by model.

Features

* Halogen free and RoHS compliant
* Low profile package
* Built-in strain relief design
* Low inductance
* Excellent clamping capability
* 1000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
* Fast response time
* Typical IR le
