20KP112CA, 20KP17A - 20000W TVS Diodes

20KP112CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 20KP112CA, 20KP17A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	20KP112CA, 20KP17A
Manufacturer	Liown
File Size	1.31 MB
Description	20000W TVS Diodes
Datasheet	20KP17A-Liown.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP112CA, 20KP17A. Please refer to the document for exact specifications by model.

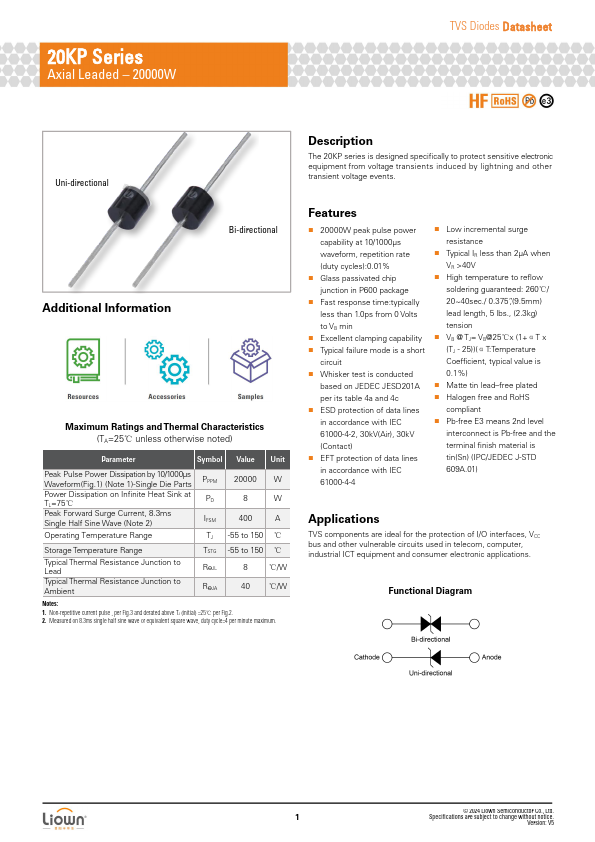

20KP112CA Product details

Description

The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

20000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%.
Glass passivated chip junction in P600 package.
Fast response time:typically less than 1.0ps from 0 Volts to VB min.
Excellent clamping capability.
Typical failure mode is a short circuit.
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV (Contact).
EFT prote.
