Part number:
20KP144A, 20KP17A
Manufacturer:
Liown
File Size:
1.31 MB
Description:
20000w tvs diodes.
Note:
This datasheet PDF includes multiple part numbers: 20KP144A, 20KP17A.
Please refer to the document for exact specifications by model.

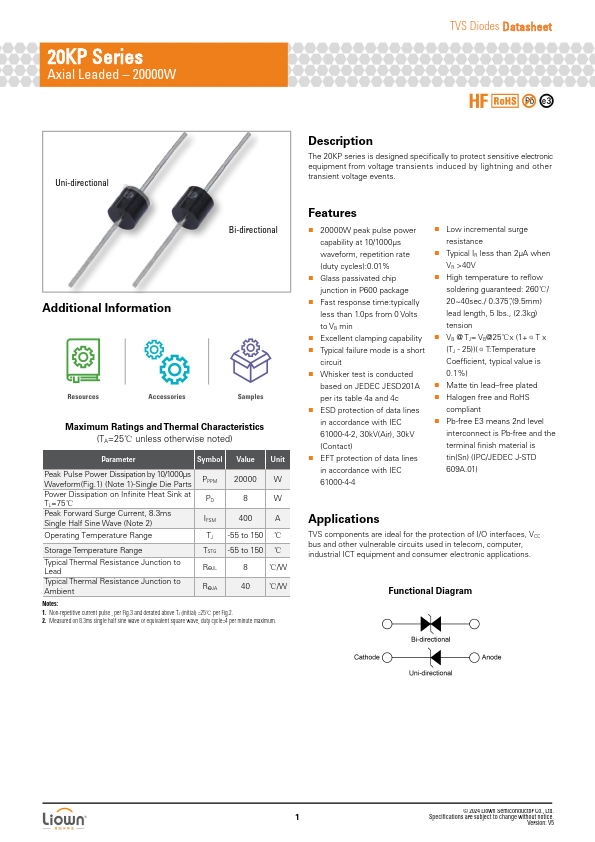

The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Bi-directional Additional Information Maximum Ratings and Thermal Characteristics (TA=25℃ unless otherwise noted) Parameter Symbol V
20KP144A Features
* 20000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in P600 package
* Fast response time:typically less than 1.0ps from 0 Volts to VB min
* Excellent clamping capability
* Typical failure mode is a shor
Datasheet Details
20KP144A, 20KP17A
Liown
1.31 MB
20000w tvs diodes.
This datasheet PDF includes multiple part numbers: 20KP144A, 20KP17A.
Please refer to the document for exact specifications by model.
