20KP160A, 20KP17A, 20000W TVS Diodes

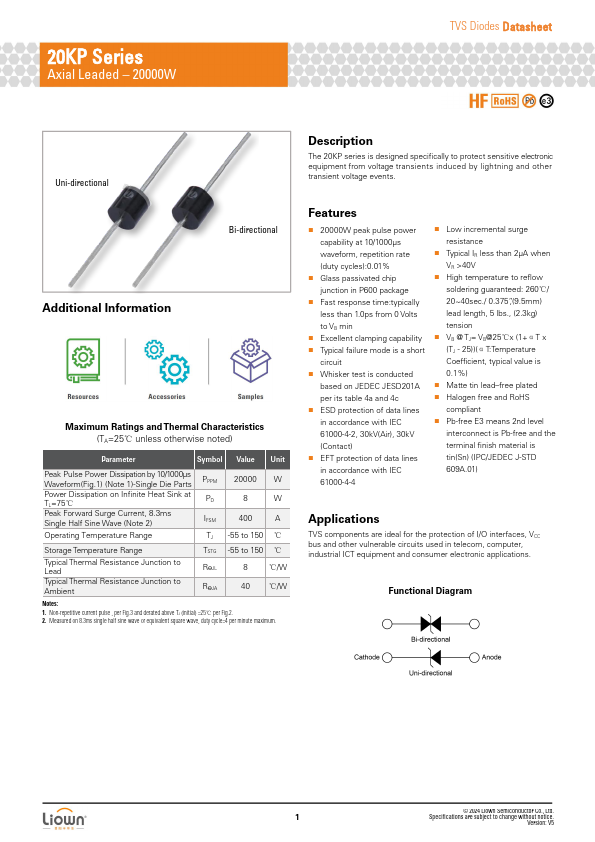

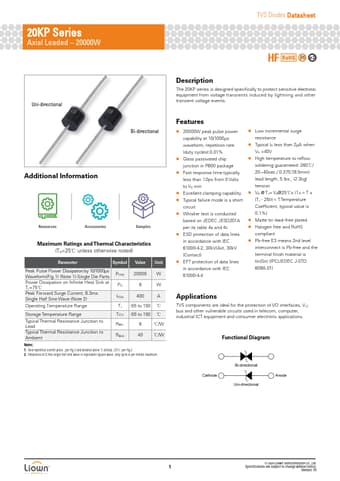

20KP Series Axial Leaded * 20000W TVS Diodes Datasheet Uni-directional .
The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

datasheet Preview Page 1 from Datasheet4u.com

20KP17A-Liown.pdf

20KP160A Datasheet Preview — This datasheet PDF includes multiple part numbers: 20KP160A, 20KP17A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20KP160A, 20KP17A

Manufacturer:

Liown

File Size:

1.31 MB

Description:

20000W TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: 20KP160A, 20KP17A.
Please refer to the document for exact specifications by model.

Features

* 20000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in P600 package
* Fast response time:typically less than 1.0ps from 0 Volts to VB min
* Excellent clamping capability
* Typical failure mode is a shor

Applications

* TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications. Functional Diagram © 2024 Liown Semiconductor Co. , Ltd. 1 Specifications are subject to change without no
