20KP232CA, 20KP17A 20000W TVS Diodes

Description

20KP Series Axial Leaded * 20000W TVS Diodes Datasheet Uni-directional .
The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

📥 Download Datasheet

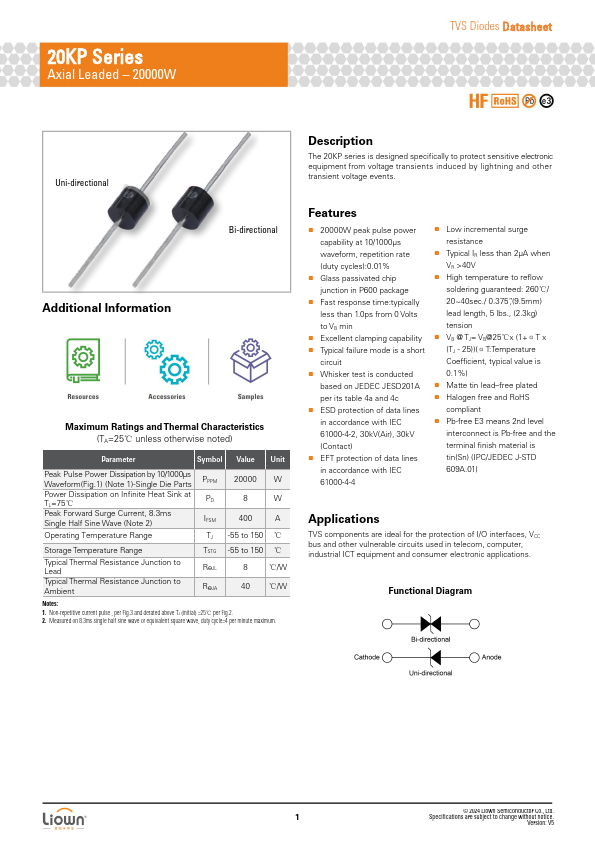

20KP232CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 20KP232CA, 20KP17A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 20KP232CA, 20KP17A
Manufacturer: Liown
File Size: 1.31 MB
Datasheet: 20KP17A-Liown.pdf
Description: 20000W TVS Diodes
Note: This datasheet PDF includes multiple part numbers: 20KP232CA, 20KP17A.
Please refer to the document for exact specifications by model.

Features

* 20000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in P600 package
* Fast response time:typically less than 1.0ps from 0 Volts to VB min
* Excellent clamping capability
* Typical failure mode is a shor

Applications

* TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications. Functional Diagram © 2024 Liown Semiconductor Co. , Ltd. 1 Specifications are subject to change without no
