LTV-357T, LTV-357T_Lite, Photocoupler

Photocoupler Product Data Sheet LTV-357T Spec No.:DS70-2001-012 Effective Date: 12/25/2018 Revision: P LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
1.

datasheet Preview Page 1 from Datasheet4u.com

LTV-357T_Lite-OnTechnology.pdf

LTV-357T Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-357T, LTV-357T_Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-357T, LTV-357T_Lite

Manufacturer:

Lite-On Technology

File Size:

371.35 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-357T, LTV-357T_Lite.
Please refer to the document for exact specifications by model.

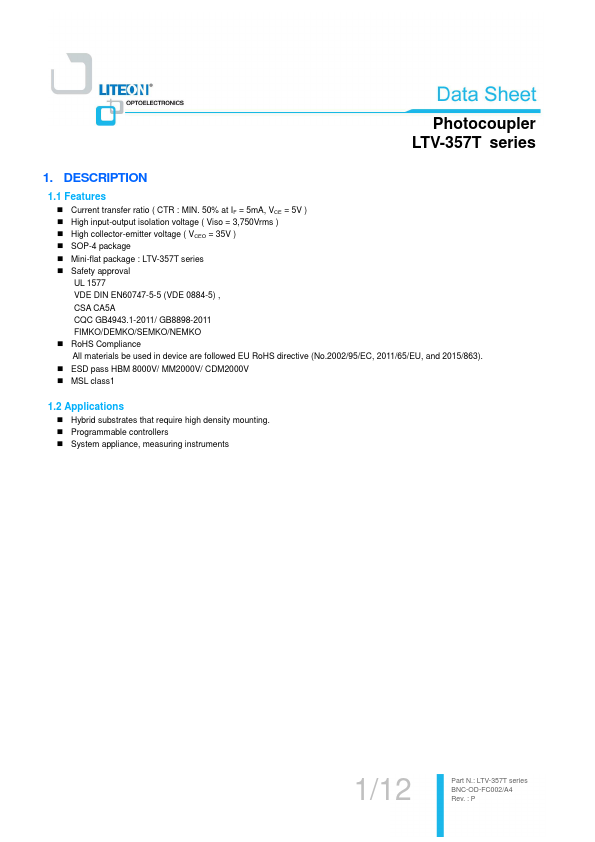

Features

* Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 3,750Vrms ) High collector-emitter voltage ( VCEO = 35V ) SOP-4 package Mini-flat package : LTV-357T series Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A CQC GB4943.1-20

Applications

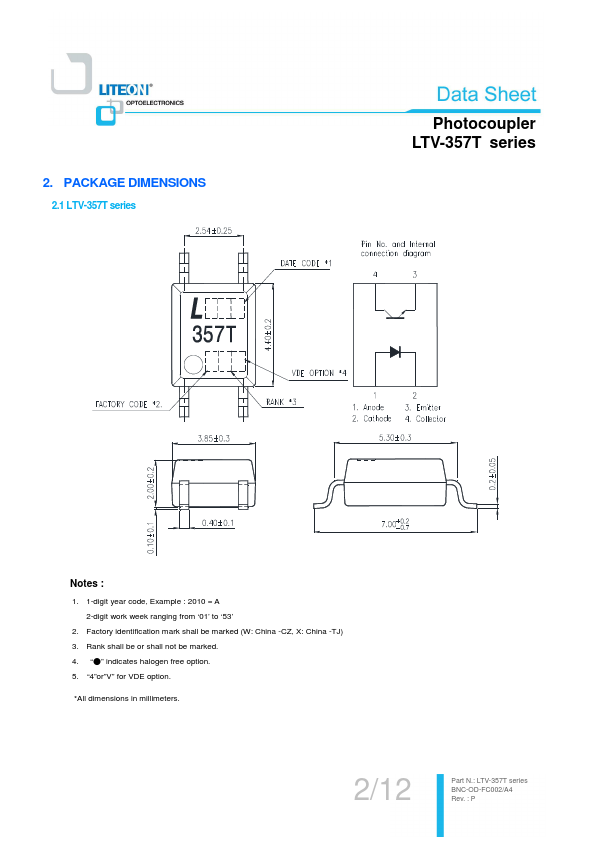

* Hybrid substrates that require high density mounting. Programmable controllers System appliance, measuring instruments 1/12 Part N. : LTV-357T series BNC-OD-FC002/A4 Rev. : P 2. PACKAGE DIMENSIONS 2.1 LTV-357T series Photocoupler LTV-357T series Notes : 1. 1-digit year code, Example : 2010 = A 2
