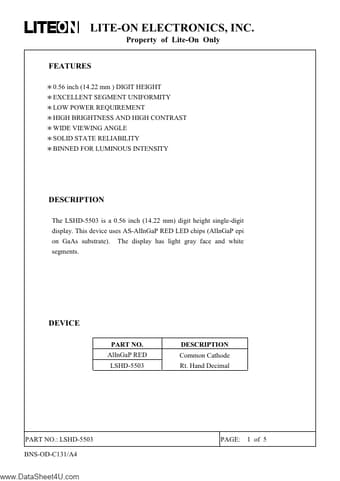

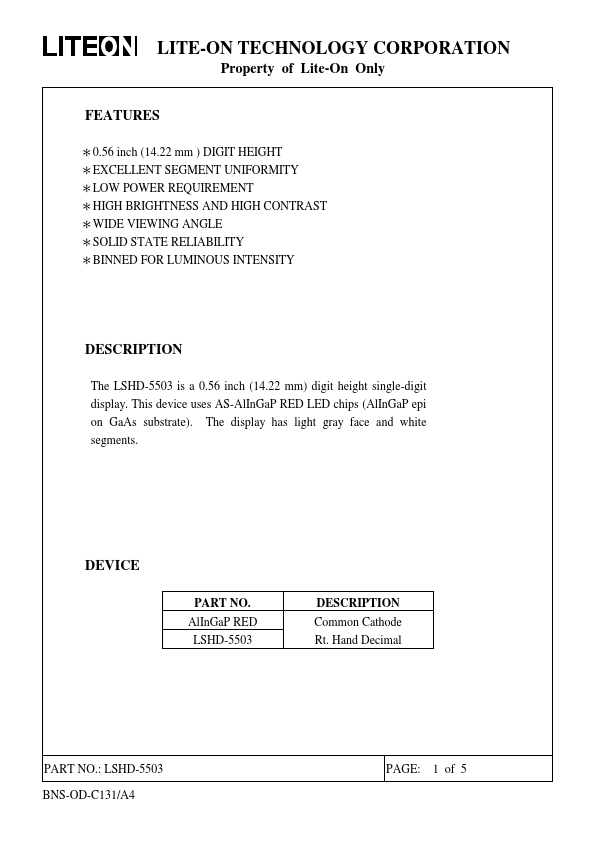

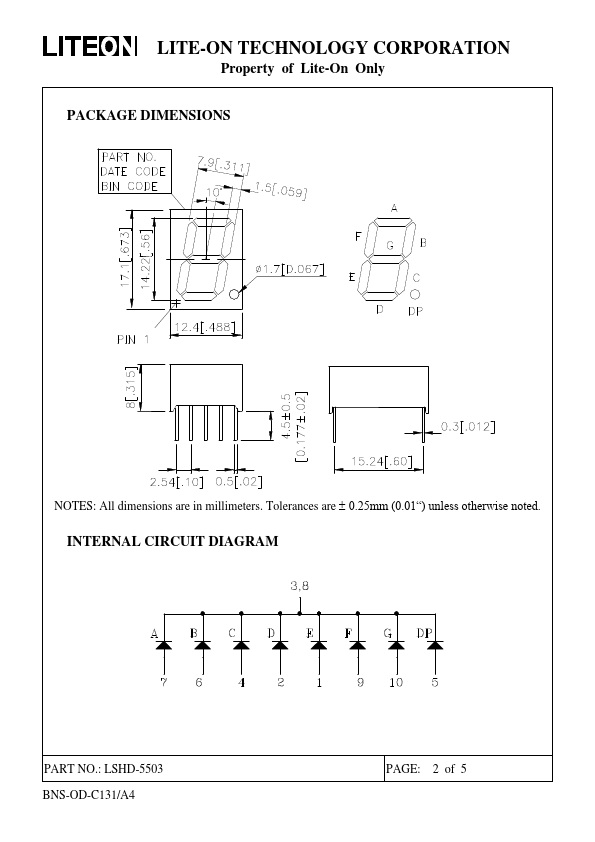

FEATURES ＊0.56 inch (14.22 mm ) DIGIT HEIGHT ＊EXCELLENT SEGMENT UNIFORMITY ＊LOW POWER REQUIREMENT ＊HIGH BRIGHTNESS AND HIGH CONTRAST ＊WIDE VIEWING ANGLE ＊SOLID STATE RELIABILITY ＊BINNED FOR LUMINOUS INTENSITY DESCRIPTION The LSHD-5503 is a 0.56 inch (14.22 mm) digit height single-digit display. This device uses AS-Al In Ga P RED LED chips (Al In Ga P epi on Ga As substrate). The display has light gray face and white segments. DEVICE PART NO. Al In Ga P RED LSHD-5503 DESCRIPTION mon Cathode Rt. Hand Decimal PART NO.: LSHD-5503 BNS-OD-C131/A4 PAGE: 1 of 5 LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only PACKAGE DIMENSIONS NOTES: All dimensions are in millimeters. Tolerances are  0.25mm (0.01“) unless otherwise noted. INTERNAL CIRCUIT DIAGRAM PART NO.: LSHD-5503 BNS-OD-C131/A4 PAGE: 2 of 5 LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only PIN CONNECTION No. CONNECTION Anode E Anode D 3 mon Cathode Anode C Anode DP Anode B Anode A 8 mon...
