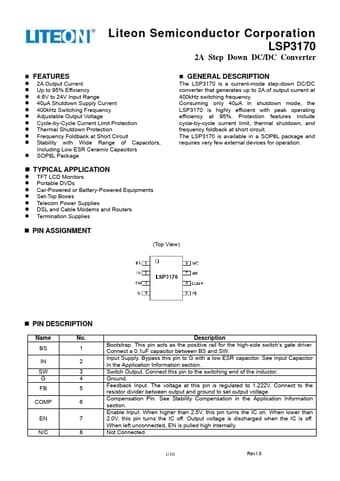

LSP3170 Datasheet, Converter, Lite-On

LSP3170 Features

• Converter 2A Output Current Up to 95% Efficiency 4.6V to 24V Input Range 40µA Shutdown Supply Current 400kHz Switching Frequency Adjustable Output Voltage Cycle-by-Cycle Current Limit Protection

PDF File Details

Part number:

LSP3170

Manufacturer:

Lite-On

File Size:

240.66kb

Download:

📄 Datasheet

Description:

2a step down dc/dc converter. The LSP3170 is a current-mode step-down DC/DC converter that generates up to 2A of output current at 400kHz switching frequency. Cons
