STPR1010CT, STPR1010CT_Lite - SUPER FAST GLASS PASSIVATED RECTIFIERS

Lite-On

📥 Download Datasheet

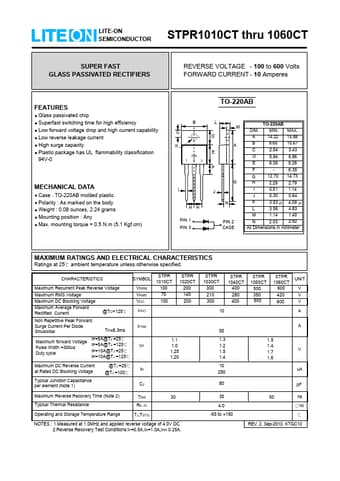

STPR1010CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR1010CT, STPR1010CT_Lite. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STPR1010CT, STPR1010CT_Lite
Manufacturer	LITEON ↗
File Size	82.45 KB
Description	SUPER FAST GLASS PASSIVATED RECTIFIERS
Datasheet	STPR1010CT_Lite-On.pdf
Note	This datasheet PDF includes multiple part numbers: STPR1010CT, STPR1010CT_Lite. Please refer to the document for exact specifications by model.

STPR1010CT Product details

Features

Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 3 TO-220AB L M D A E DIM. A B C D E F G F G H I J K TO-220AB MAX. MIN. 14.22 15.88 9.65 10.67 2.54 3.43 5.84 6.86 9.28 8.26 12.70 6.35 14.73.
