0805L200SLTH - Resettable PTCs

Download the 0805L200SLTH datasheet PDF. This datasheet also covers the 0805L075SL variant, as both devices belong to the same resettable ptcs family and are provided as variant models within a single manufacturer datasheet.

Description

Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance, ultra low voltage drop and automatic resettable protection are desired.

Features

  • Ultra low internal resistance.
  • Very thin profile.
  • Miniature size saves board space.
  • Allows a higher hold current dvice in a smaller factor and lower profile as compared to a standard PPTC.
  • Fast response to fault currents.
  • 0402 size available - the smallest PPTC in the market.
  • Compatible with high temperature solders.
  • Broadest range of Hold Current ratings (100mA to 9A).
  • RoHS compliant, Lead Free and Halogen Fr.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (0805L075SL-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
0805LS Chip Inductors Coilcraft
0805 Double Sided Chip Resistor TT electronics
0805 Multilayer Chip Ceramic Capacitor HITANO
0805 Ultra Low Profile Common Choke Coilcraft
0805 Surface-Mount Ceramic Multilayer Capacitors YAGEO

Other Datasheets by Littelfuse

Part Number Description
0805L260SLTH Resettable PTCs
0805L POLYFUSE Resettable PTC
0805L075SL Resettable PTCs
0805L110SL Resettable PTCs
0805L150SL Resettable PTCs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

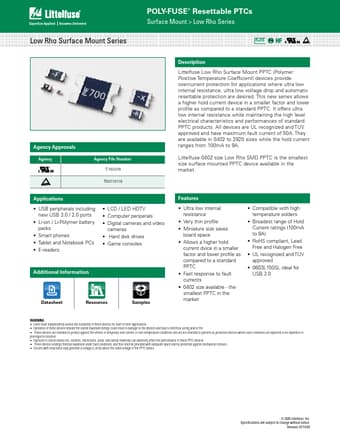

Low Rho Surface Mount Series POLY-FUSE® Resettable PTCs Surface Mount > Low Rho Series RoHS Agency Approvals Agency Agency File Number E183209 R50119118 Description Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance, ultra low voltage drop and automatic resettable protection are desired. This new series allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra low internal resistance while maintaining the high level electrical characteristics and performances of standard PPTC products. All devices are UL recognized and TUV approved and have maximum fault current of 50A.
