1.5KE250A TVS Diodes

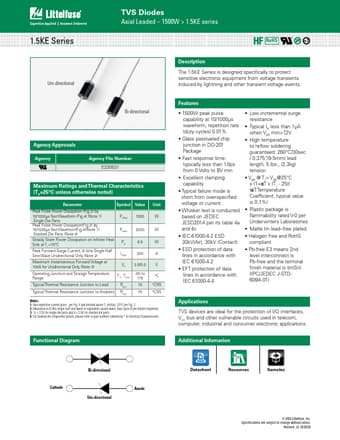

1.5KE Series TVS Diodes Axial Leaded 1500W > 1.5KE series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation (Fig.2) by 10/1000μs Test Waveform (Fig.4) (Note 1) -Single Die Parts Peak Pulse Power Dissipation(Fig.2) by 10/1000μs Test Waveform(Fig.4)(Note 1) -Stacked Die Parts (Note 4) PPPM 1500 W PP.

1.5KE250A Features

* 1500W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Glass passivated chip junction in DO-201 Package

* Fast response time: typically less than 1.0ps from 0 Volts to BV min

* Excellent clamping capability

* Typical failu
