1KSMB110A, 1KSMB6.8A, Transient Voltage Suppression Diodes

Transient Voltage Suppression Diodes Surface Mount * 1000W > 1KSMB series 1KSMB Series RoHS Pb e3 Uni-directional Bi-directional Agency A.
The 1KSMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient v.

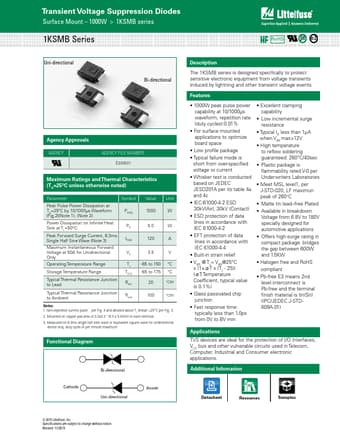

datasheet Preview Page 1 from Datasheet4u.com

1KSMB6.8A-Littelfuse.pdf

1KSMB110A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1KSMB110A, 1KSMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1KSMB110A, 1KSMB6.8A

Manufacturer:

Littelfuse ↗

File Size:

958.84 KB

Description:

Transient Voltage Suppression Diodes

Note:

This datasheet PDF includes multiple part numbers: 1KSMB110A, 1KSMB6.8A.
Please refer to the document for exact specifications by model.

Features

* 1000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

Applications

* to optimize board space
* Low profile package
* Typical failure mode is short from over-specified voltage or current
* Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
* IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
* ESD protection
