1SMB48AT3G 600 Watt Peak Power Zener TVS

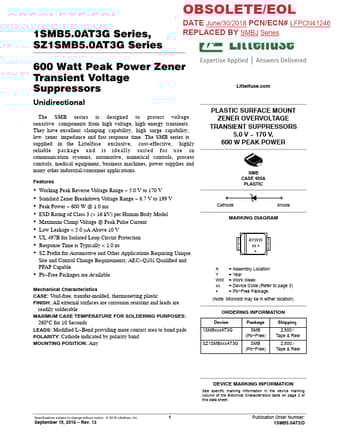

1SMB5.0AT3G Series, SZ1SMB5.0AT3G Series OBSOLETE/EOL DATE June/30/2018 PCN/ECN# LFPCN41246 REPLACED BY SMBJ Series 600 Watt Peak Power Zener Transient Voltage Suppressors Littelfuse.com Unidirectional The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in the Littelfuse exclusive, cost-effective, high.

1SMB48AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 199 V

* Peak Power

* 600 W @ 1.0 ms

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leak

1SMB48AT3G Datasheet (1.25 MB)
