1SMC17AT3G Datasheet - Littelfuse

1SMC17AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors

1SMC5.0AT3G Series, SZ1SMC5.0AT3G Series 1500 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in Littelfuse exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automo.

1SMC17AT3G Features

* Working Peak Reverse Voltage Range

* 5.0 V to 78 V

* Standard Zener Breakdown Voltage Range

* 6.7 V to 91.25 V

* Peak Power

* 1500 W @ 1 ms

* ESD Rating of Class 3 (> 16 KV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Cu

1SMC17AT3G Datasheet (620.53 KB)

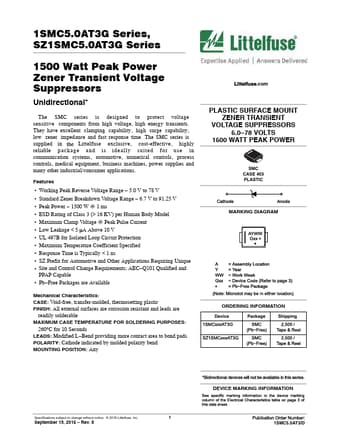

Preview of 1SMC17AT3G PDF

Datasheet Details

Part number:

1SMC17AT3G

Manufacturer:

Littelfuse ↗

File Size:

620.53 KB

Description:

1500 watt peak power zener transient voltage suppressors.
