3.0SMC20A

TVS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Littelfuse Inc 3.0SMC20A TVS DIODE 20VWM 42VC DO214AB DigiKey 0 9000 units
$0.23

3.0SMC20A Datasheet (770.75 KB)

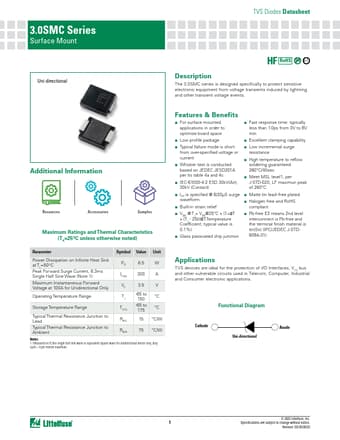

Preview of 3.0SMC20A PDF Datasheet

Datasheet Details

Part number:

3.0SMC20A

Manufacturer:

Littelfuse ↗

File Size:

770.75 KB

Description:

Tvs

3.0SMC20A Features

* & Benefits

* For surface mounted applications in order to optimize board space

* Fast response time: typically less than 1.0ps from 0V to BV min

* Low profile package

* Excellent clamping capability

* Typical failure mode is short from over-specified voltage or current

3.0SMC20A General Description

The 3.0SMC series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Additional Information Resources Accessories Samples Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted).
