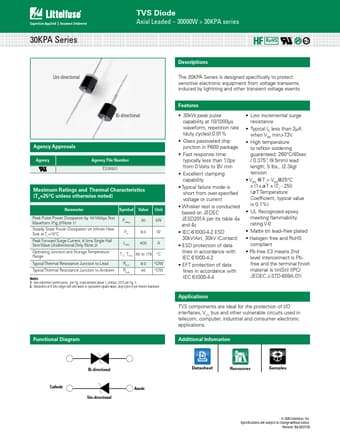

30KPA Series TVS Diode Axial Leaded 30000W > 30KPA series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2)(Note 1) PPPM 30 kW Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC PD 8.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave Uni.

30KPA300A Features

* 30kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Glass passivated chip junction in P600 package

* Fast response time: typically less than 1.0ps from 0 Volts to BV min

* Excellent clamping capability

* Typical failure
