3KP110CA, 3KP5.0A, Transient Voltage Suppression Diodes

Transient Voltage Suppression Diodes Axial Leaded * 3000W > 3KP series 3KP Series 03/31/2017 5KP Series LFPCN21244 Uni-directional RoHS .
The 3KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vol.

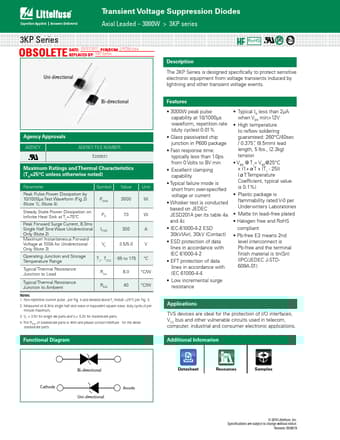

datasheet Preview Page 1 from Datasheet4u.com

3KP5.0A-Littelfuse.pdf

3KP110CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KP110CA, 3KP5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3KP110CA, 3KP5.0A

Manufacturer:

Littelfuse ↗

File Size:

928.55 KB

Description:

Transient Voltage Suppression Diodes

Note:

This datasheet PDF includes multiple part numbers: 3KP110CA, 3KP5.0A.
Please refer to the document for exact specifications by model.

Features

* 3000W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in P600 package
* Fast response time: typically less than 1.0ps from 0 Volts to BV min
* Excellent clamping capability
* Typical failure

Applications

* TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications. Additional Infomarion Cathode Bi-directional Uni-directional Anode Datasheet Resources Samples © 2018 Littelfuse, Inc.
