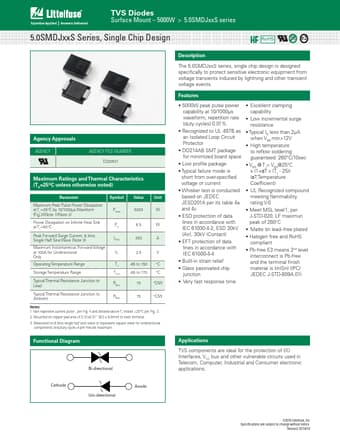

TVS Diodes Surface Mount 5000W > 5.0SMDJxxS series 5.0SMDJxxS Series, Single Chip Design RoHS Pb e3 Agency Approvals AGENCY AGENCY FILE NUMBER E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Maximum Peak Pulse Power Dissipation a(FtiTgL.=2)2(N5OoCteb1y)(1N0o/1t0e020)µs Waveform Symbol PPPM Value 5000 Unit W Power Dissipation on Infinite Heat Sink at TL=50OC Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) Maximum .

5.0SMDJ11CAS Features

* 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Recognized to UL 497B as an Isolated Loop Circuit Protector

* DO214AB SMT package for minimized board space

* Low profile package

* Typical failure mode is short

5.0SMDJ11CAS Datasheet (1.15 MB)
