5.0SMDJ36AS Datasheet, Diodes, Littelfuse

5.0SMDJ36AS Features

• Diodes
• 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
• Recognized to UL 497B as an Isolated Loop Circuit Protector
• D

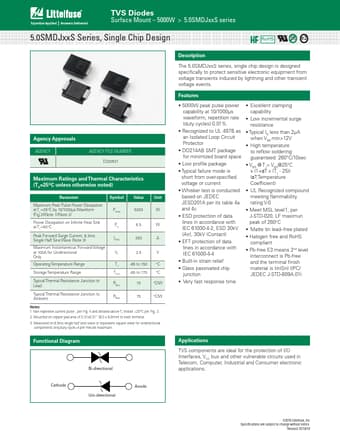

PDF File Details

Part number:

5.0SMDJ36AS

Manufacturer:

Littelfuse ↗

File Size:

1.15MB

Download:

📄 Datasheet

Description:

Tvs diodes. The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients

5.0SMDJ36AS Application

• Applications TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industr
