5.0SMDJ40A Transient Voltage Suppression Diodes

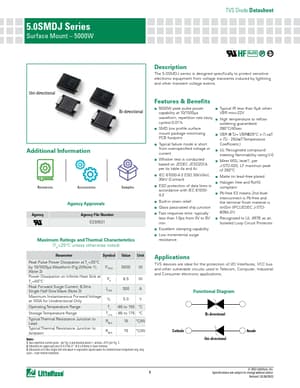

5.0SMDJ Series Surface Mount 5000W TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Additional Information Resources Agency Accessories Samples Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation at TL=25OC by 10/1000µs Waveform (Fig.2)(Note 1), PPPM 5000 W (Note 2) Power Dissipation on Infinite Heat Sink at TL=50OC PD Peak Forward S.

5.0SMDJ40A Features

* & Benefits

* 5000W peak pulse power

* Typical IR less than 5μA when capability at 10/1000μs VBR min>22V waveform, repetition rate (duty

* High temperature to reflow cycles):0.01% soldering guaranteed:

* SMD low profile surface 260°C/40sec mount package minimizing PCB footpr

5.0SMDJ40A Datasheet (888.50 KB)
