5KP15A-HRA Datasheet - Littelfuse

5KP15A-HRA TVS Diodes

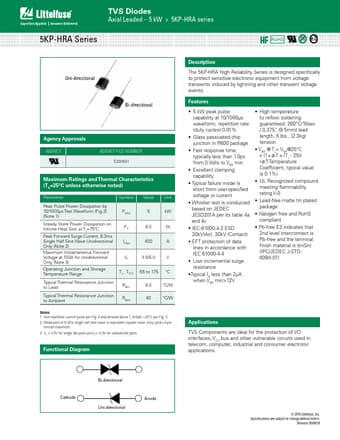

TVS Diodes Axial Leaded 5 kW > 5KP-HRA series 5KP-HRA Series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals AGENCY AGENCY FILE NUMBER E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2) (Note 1) Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC Peak Forward Surge Current, 8.3ms Single Half Sine Wave Unidirectional Only (Note 2.

5KP15A-HRA Datasheet (276.69 KB)
