5KP43A

TVS Diode

Littelfuse

5KP43A Features

* 5 kW peak pulse capability

* Typical IR less than 2μA at 10/1000μs waveform, when VBR min>12V repetition rate (duty

* High temperature cycles):0.01% to reflow soldering

* Glass passivated chip guaranteed: 260°C/40sec junction in P600 package / 0.375”, (9.5

5KP43A General Description

The 5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwi.

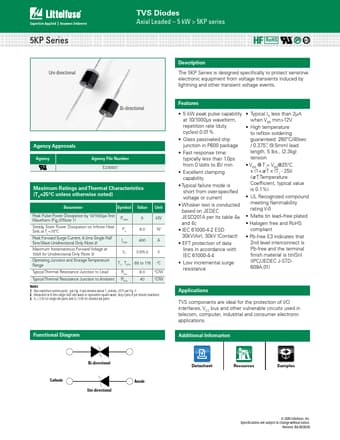

5KP43A Datasheet (0.97 MB)
