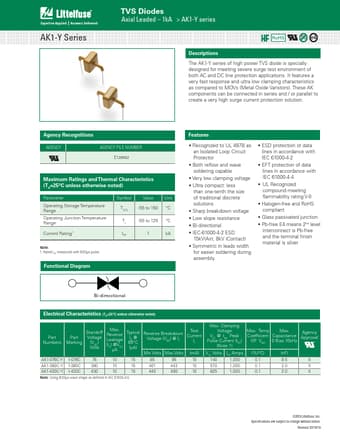

Description
The AK1-Y series of high power TVS diode is specially designed for meeting severe surge test environment of both AC and DC line protection applications.
Features
- a very fast response and ultra low clamping characteristics as compared to MOVs (Metal Oxide Varistors). These AK components can be connected in series and / or parallel to create a very high surge current protection solution. Agency Recognitions
AGENCY
AGENCY FILE NUMBER E128662
Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted)
Parameter Operating Storage Temperature Range Operating Junction Temperature Range
Symbol
Value Unit
TSTG -55 to 150 °C
TJ -55 to 125.
